Promote user content from SQL in Logic App workflows with Transco

motivation

Integration scenarios often need to 'promote' or 'enrich' messages/data from external stored systems. Codit is a long-term implementer of something called 'Transco', which was originally a Microsoft BizTalk component. Now, modern Azure Logic Apps integration benefits from this behavior.

Invictus provides a Transco component to promote properties from a database, by using the content or context to create the SQL query which executes against the specified table. Transco can also perform transformations on XML content by simply specifying the XSLT file from storage (Transco supports XSLT 1.0 syntax.).

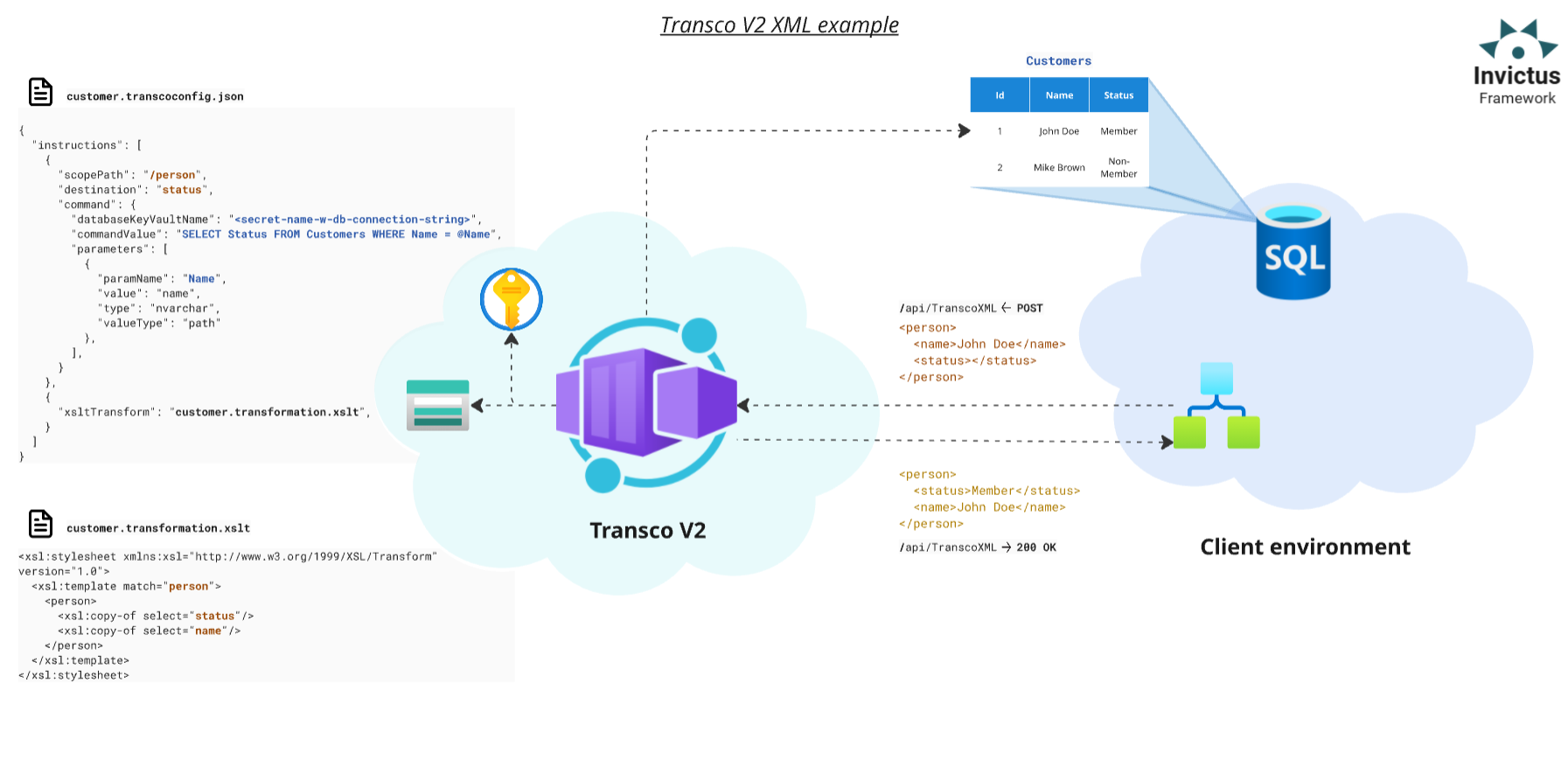

Transco v2 XML example

Available endpoints​

  • /api/TranscoXML: uses XML content and a Transco configuration file to list the instructions necessary to promote values from an SQL database or to transform the content via an XSLT file.

  • /api/TranscoJson: uses JSON content and a Transco configuration file to list the instructions necessary to promote values from an SQL database. The component can't perform transformations on JSON content.

  • /api/MatrixBasicPromote: accepts a simple list of parameters and promotes them to the Context in the response.

The Transco request requires following values:

  • XML/JSON content in BASE 64 format;
  • Context as key-value pair list;
  • Name of Transco config file in Azure Blob Storage.
Full request body JSON example
// POST /api/TranscoXML
// POST /api/TranscoJson
{
  "Content": "PD94bWwgdmVyc2lvbj0iMS4wIiBlbmNvZGluZz0idXRmLTE2Ij8+PHJvb3Q+PG5hbWUgc3RhdHVzPSJNZW1iZXIiPkpvaG4gRG9lPC9uYW1lPjwvcm9vdD4=",
  "Context": {
    "CustomerActive": "true"
  },
  "TranscoConfig": "docs_config.json"
}
Full response body JSON example
// 200 OK <- /api/TranscoXML
// 200 OK <- /api/TranscoJson
{
  "Content": "PD94bWwgdmVyc2lvbj0iMS4wIiBlbmNvZGluZz0idXRmLTE2Ij8+PE1lbWJlcj5Kb2huIERvZTwvTWVtYmVyPg==",
  "Context": {
    "CustomerActive": "true"
  },
  "TranscoConfig": "docs_config.json"
}

Transco config file​

The component requires a JSON Transco configuration file to describe the instructions to perform. Execution of instructions happens in the order in which they appear.

The request should specifies the name of the configuration file.

The Transco component can execute SQL commands to promote properties from a specified database and table. The database connection happens via either a raw connection string or the name of an Azure Key Vault secret holding the connection string.

You can populate the parameters of the SQL query from 3 sources:

  • XML/JSON request content via XPath/JPath
  • Request context
  • Fixed value

The component will insert the SQL query result at the specified destination XPath or JPath. For XPaths ending at an attribute (ex: /persons/person/@name), it inserts the value in that attribute. Otherwise, it insert the value in the inner text of the XML node.

  • The scopePath option sets the affected nodes to apply the command.
  • Always provide a connection to the SQL database (via a connection string in plain text or in an Azure Key Vault secret).
  • Denote parameters in the SQL query with an @ symbol. You may give parameters a name or indexed with a number.
    SELECT CustomerStatus FROM dbo.Customers WHERE CustomerName = @Name AND Active = @Active*
    -- or
    SELECT CustomerStatus FROM dbo.Customers WHERE CustomerName = @1 AND Active = @2*
storage account

Save all required files in the Azure Storage Account and in a Blob Storage container with the name: Transcov2configstore (Invictus automatically creates this container):

  • /Configs folder with Transco config files
  • /XSLTs folder with transformation files
  • /Assemblies folder with assembly and dependency DLL files
Full Transco config file specification
{
  "instructions": [
    {
      "scopePath": [XPath/JPath of content scope],
      "namespaces": [
        {
          "namespace": [XML Namespace],
          "prefix": [XML Namespace prefix]
        }
      ],
      "destination": [XPath/JPath of the results destination, or Context key if promoteToContext = true],
      "promoteToContext": [If true query result is saved to Context at key destination],
      "command": {
        "databaseConnectionString":[Raw connection string to DB],
         "databaseKeyVaultName": [Name of DB connection string secret in Key Vault],
         "commandValue": [SQL query to be executed],
         "isMandatory": [If true, will throw error when result is null],
        "columnName": [Obtain value from specified column if query returns multiple fields. If empty, value from first column is obtained],
         "defaultValue": [Default value of result],
         "parameters": [
           {
            "paramName": [Name of param in query],
             "value": [Type dependent. XPath or JPath if valueType = "path"],
             "type": [SQL DB type. See: https://learn.microsoft.com/en-us/dotnet/api/system.data.sqldbtype],
             "valueType": ["path" or "fixedValue" or "context"]
          },
          {
            "paramName": [Name of param in query],
            "value": [Type dependent. Any string value if valueType = "fixedValue"],
            "type": [SQL DB type. See: https://learn.microsoft.com/en-us/dotnet/api/system.data.sqldbtype],
            "valueType": ["path" or "fixedValue" or "context"]
          },
          {
            "paramName": [Name of param in query],
            "value": [Type dependent. Key to value in context if valueType = "context"],
            "type": [SQL DB type. See: https://learn.microsoft.com/en-us/dotnet/api/system.data.sqldbtype],
            "valueType": ["path" or "fixedValue" or "context"]
          }
        ],
        "cache": {
          "useCaching": [If true, query result is cached],
          "cachingTimeout": [Cache timeout timespan]
        }
      }
    },
    {
      "xsltTransform": [Name of XSLT file],
      "extensions": [
        {
          "namespace": [Assembly namespace],
           "assemblyName": [Assembly name],
           "className": [Assembly class name],
           "dependencies": [
             "[DLL dependency file name]",
             "[DLL dependency file name]"
           ]
        }
      ]
    }
  ],
  "options": {
    "configCache": {
      "useCaching": [If true, config file is cached],
      "cachingTimeout": [Cache timeout timespan]
    },
    "indentResult": [If true, Transco results will be formatted and indented]
  }
 }

Customization​

Available Bicep parameters

The following Bicep parameters control the inner workings of the Transco V2 component. See the deployment of the Invictus Framework to learn more.

Bicep parameterDefaultDescription
storageAccountNameinvictus{resourcePrefix}storeThe name of the Azure Storage Account (reused across Framework components) for the transcov2configstore Azure Blob Storage container that stores the referenced Transco configurations, referenced XSLT transformations and assembly dependencies.
keyVaultNameinvictus-${resourcePrefix}-vltThe name of the Azure Key Vault (reused across Framework components and Microsoft authentication) where the Transco retrieves its SQL connection string.
appInsightsNameinvictus-${resourcePrefix}-appinsThe name of the Azure Application Insights resource where the Transco component sends its telemetry.
transcoV2FunctionNameinv-${resourcePrefix}-transco-v2The name of the Azure Container App for the Transco component.
transcoV2Scaling{ cpuResources: '0.5', memoryResources: '1.0Gi', scaleMaxReplicas: 1, scaleMinReplicas: 0, concurrentRequests: 10 }The Container App options to control scaling. See scaling rules in Azure Container Apps.

Migrating Transco v1 to v2​

Migrating Transco v1 to v2

The following changes in v2:

  • Authentication,
  • Endpoints,
  • Metadata links.
migrate Transco configuration files

Use the migration tool from Codit's Integration Practice to migrate your existing Transco v1 configuration files to the new v2 format.

"Transform_XML": {
  "type": "Http",
  "inputs": {
    "method": "POST",
-   "uri": "[parameters('invictus').Framework.Transco.v1.TranscoXmlUrl]",
+   "uri": "[parameters('invictus').Framework.Transco.v2.TranscoXmlUrl]",
    "authentication": {
-     "username": "Invictus",
-     "password": "@parameters('invictusPassword')",
-     "type": "Basic",
+     "identity": "[parameters('infra').managedIdentity.id]",
+     "audience": "[parameters('invictus').authentication.audience]",
+     "type": "ManagedServiceIdentity"
    },
    "body": {
      "Content": "@triggerBody()?['Content']",
      "Context": "",
      "TranscoConfig": "EFACT_D96A_ORDERS-to-Generic_Order.json"
    }
  },
  "runAfter": {}
}

Migrating Matrix v1 to Transco v2

Transco v2 now embeds the Matrix v1 functionality, only authentication and endpoints requires changing.

"Extract_Message_Context": {
  "type": "Http",
  "inputs": {
    "method": "POST",
-   "uri": "[parameters('invictus').framework.matrix.v1.basicMatrixUrl]",
+   "uri": "[parameters('invictus').framework.Transco.v2.basicMatrixUrl]",
    "body": {
      "Domain": "B2B-Gateway",
      "Service": "@{concat('AS2-Receive-', body('Decode_AS2_message')?.aS2Message?.aS2To)}",
      "Action": "@{outputs('Integration_Account_Artifact_Lookup_-_Get_SendingPartner')?.properties?.metadata?.PayloadFormat}",
      "Version": "1.0",
      "Sender": "@{outputs('Integration_Account_Artifact_Lookup_-_Get_SendingPartner')?.properties?.metadata?.PartyName}",
      "Content": "@{base64(body('Decode_AS2_message')?.AS2Message?.Content)}",
      "KeyValueCollection": {
        "ReceiveFileName": "@{body('Decode_AS2_message')?['AS2Message']?['FileName']}",
        "ReceiveProtocol": "AS2",
        "ReceiveProtocolDetails": "@{body('Decode_AS2_message')?['AS2Message']?['AS2From']} > @{body('Decode_AS2_message')?['AS2Message']?['AS2To']}",
        "ReceiveReference": "@{body('Decode_AS2_message')?['AS2Message']?['OriginalMessageId']}",
        "ReceiveTimeUtc": "@{utcNow()}"
      }
	},
	"authentication": {
-     "username": "Invictus",
-     "password": "@parameters('invictusPassword')"
-     "type": "Basic",
+     "identity": "[parameters('infra').managedIdentity.id]",
+     "audience": "[parameters('invictus').authentication.audience]",
+     "type": "ManagedServiceIdentity"
	}
  },
  "runAfter": {},
- "metadata": {
-   "apiDefinitionUrl": "[parameters('invictus').framework.matrix.v1.definitionUrl]",
-   "swaggerSource": "custom"
- }
}
